Dart Automaten


Löwen Automat

Anleitung Löwen Turnier Dart HB8-96


13. Schaltbilder und Bestückungspläne
13.1. LP Infrarot-Sensor
13.2. LP Leuchtdioden-Front
13.3. LP 8-Player-Display SMD
13.4. LP Lampentreiber
13.5. Bestückung Controller Board

13. Schaltbilder und Bestückungspläne

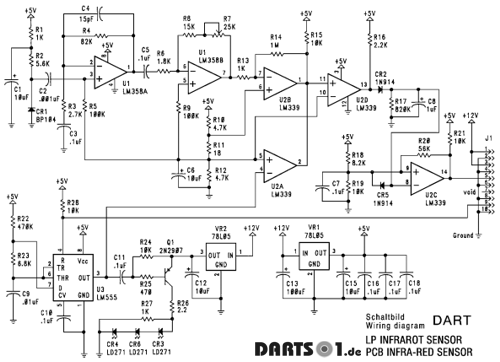

13.1. LP Infrarot-Sensor


Infrarot-Sensor-Dart-Automat

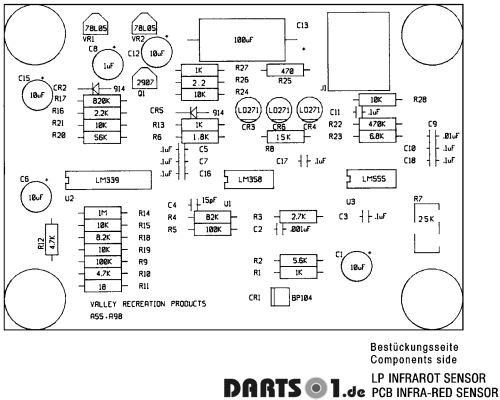

Bestueckungsseite-Loewen-Dart

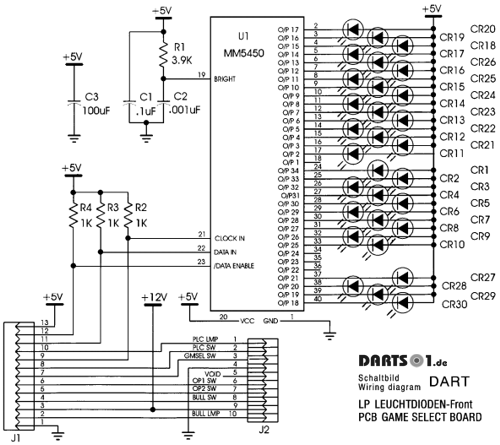

13.2. LP Leuchtdioden-Front


Leuchtdioden-Front

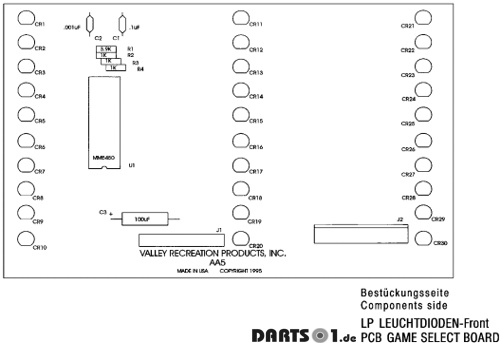

Game-Select-Board

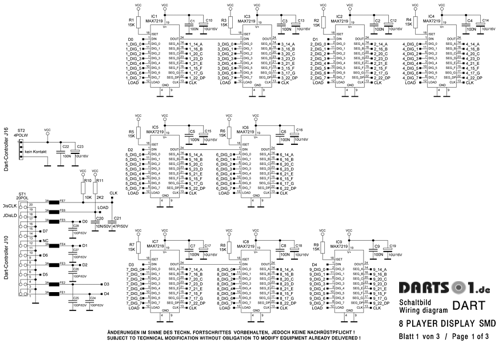

13.3. LP 8-Player-Display SMD

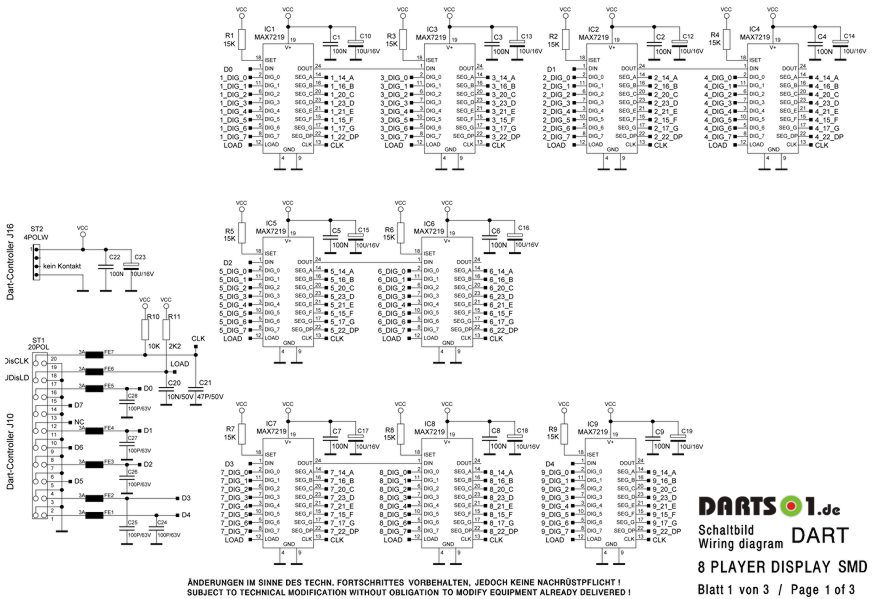

8-Player-Display

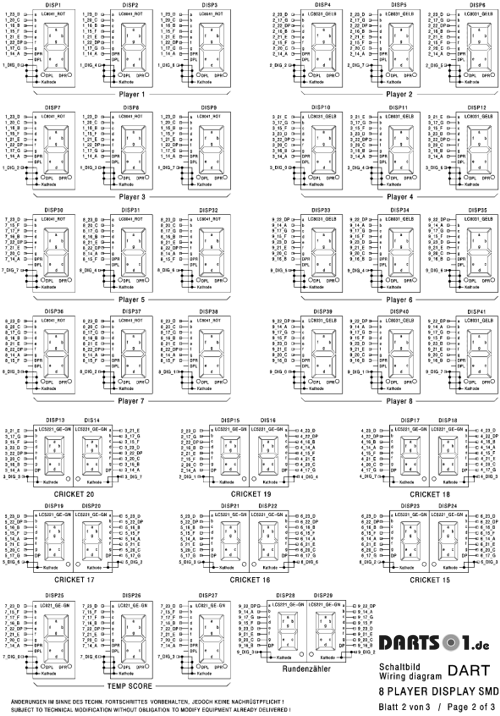

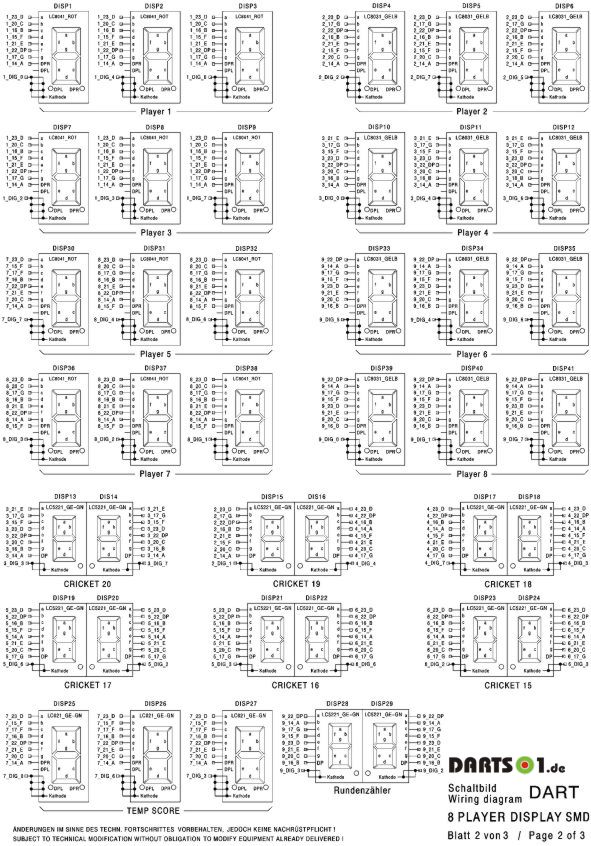

8-Player-Display-SMD

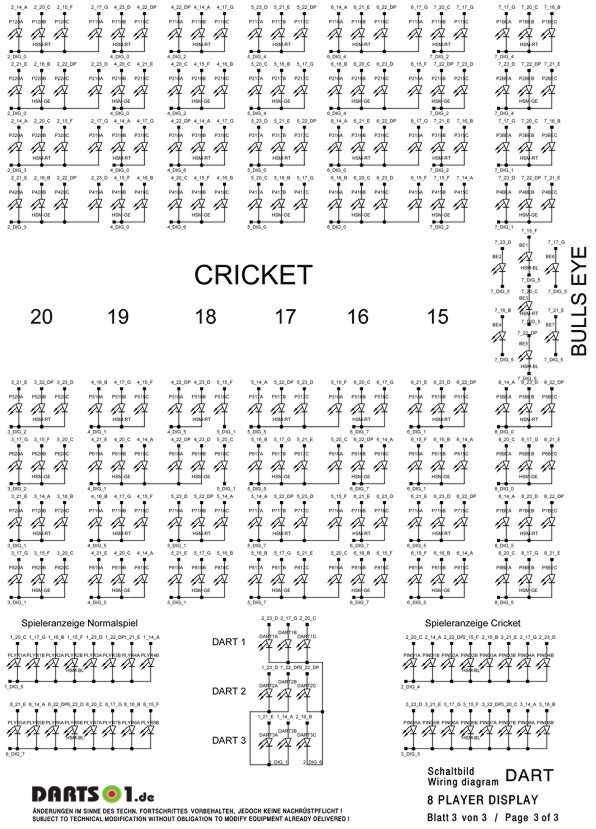

Schaltplan-Cricket

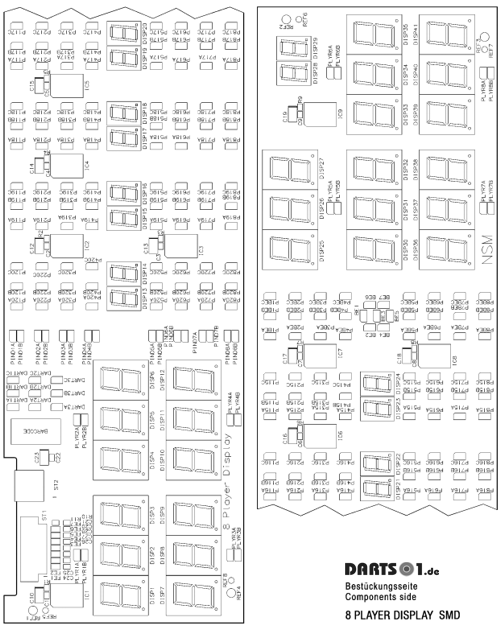

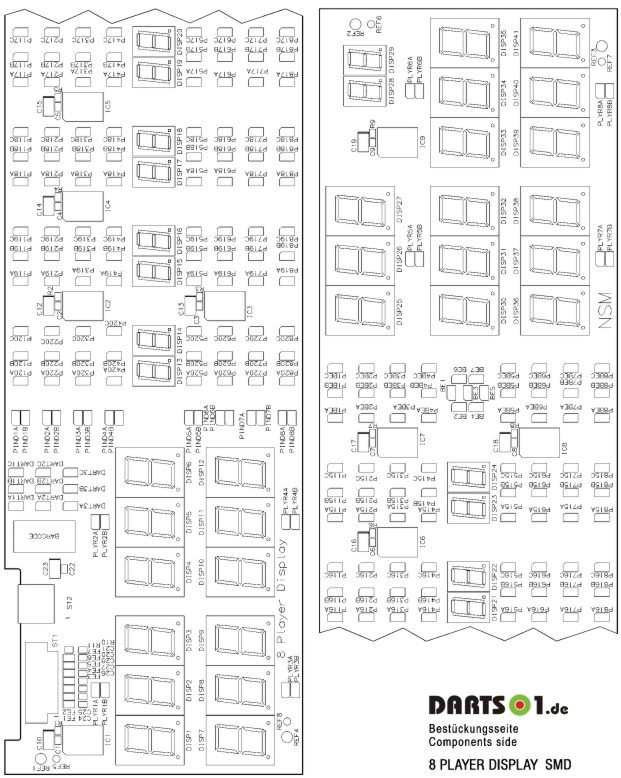

Bestueckungsseite-Dart-Automat


13.4. LP Lampentreiber

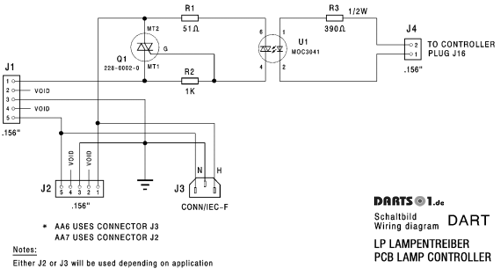

Lampentreiber-Dart-Automat

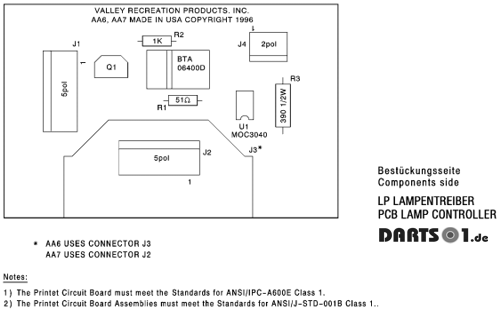

LP-Lampentreiber-Dart-Automat


13.5. Bestückung Controller Board

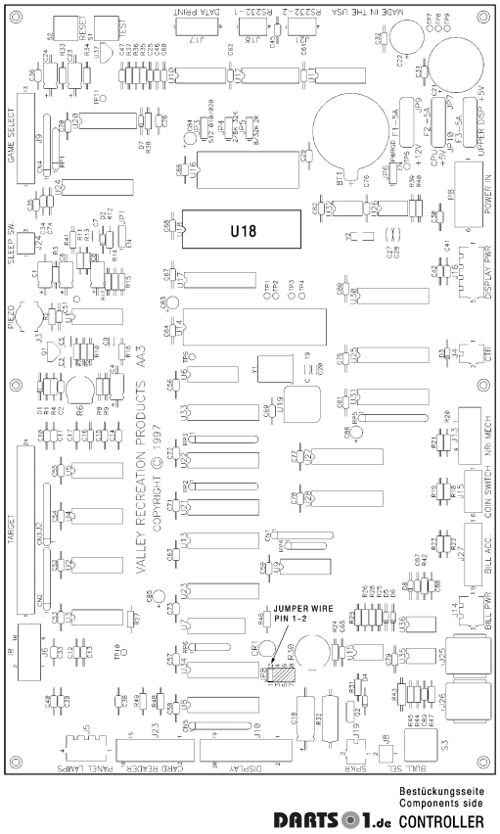

Controller-Dartautomat
